4 Rockville WA6570 6.5″ 70V Commercia In-Wall Speakers Amp 4 Restaurant/Bar/Cafe

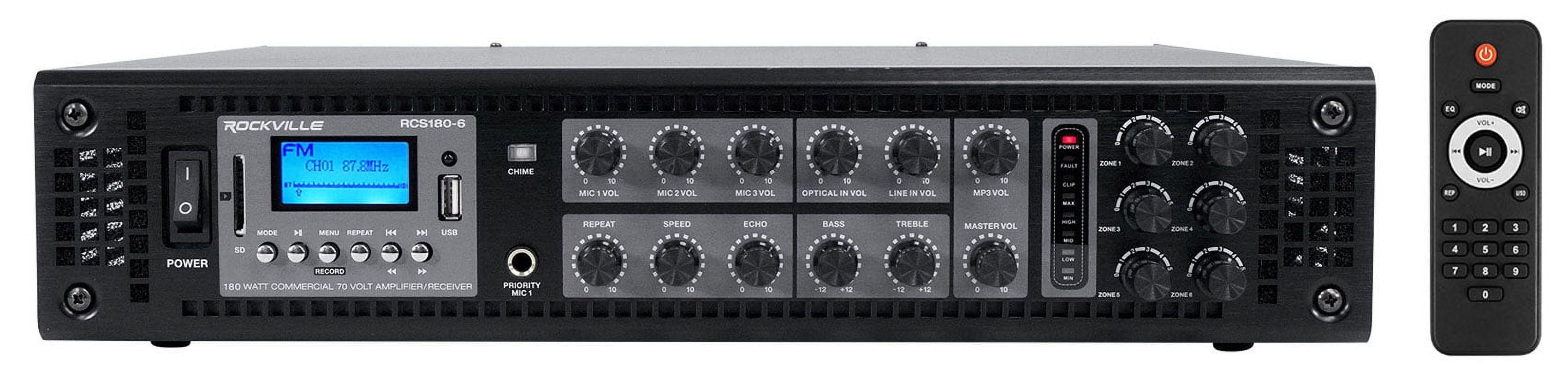

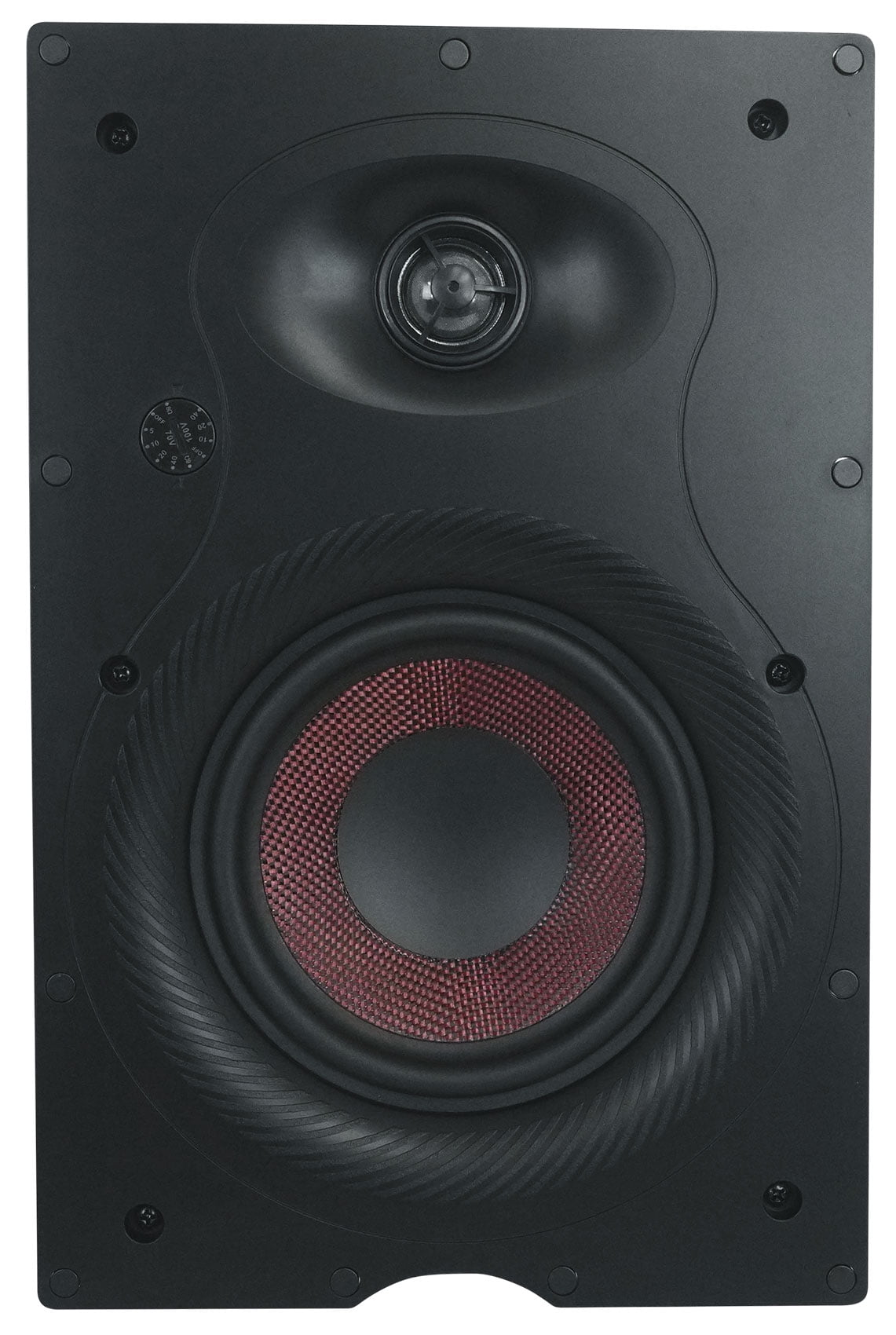

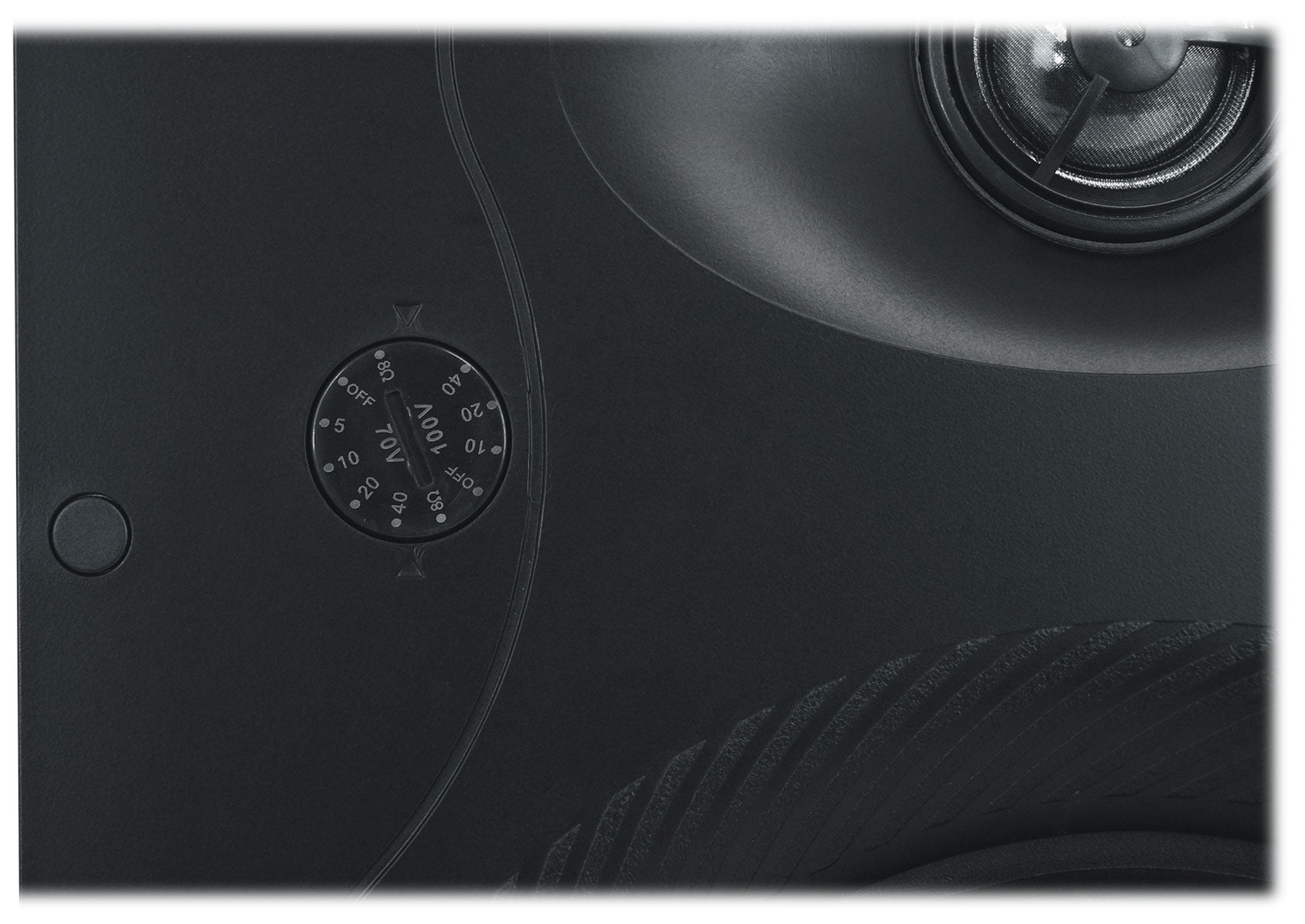

Rockville RCS180-6 180W 6-Zone 70V Commercial Amplifier & WA6570 6.5″ In-Wall Speakers The Rockville RCS180-6 is a powerful 180W rack-mountable digital hybrid amplifier/receiver, designed for commercial applications like restaurants, cafes, offices, and conference rooms. This amplifier supports 70V, 100V, 8-ohm, and 4-ohm configurations, making it highly versatile. Included in this package are (2) Rockville WA6570 6.5″ in-wall speakers, designed for premium sound with a clean, professional look. RCS180-6 Key Features: 180W 70V/100V digital hybrid amplifier with 6-zone control (1) Set RCA AUX inputs Supports Bluetooth streaming, FM radio, USB, SD, and optical input Three microphone inputs with individual echo controls Euro-block speaker terminals for easy installation Chime button for announcements Built-in cooling system and clipping limiter for protection Bass, treble, and individual volume controls for each zone Easy rack-mountable design with removable brackets WA6570 6.5″ In-Wall Speakers Features: Transformer taps (70.7V): 40W/20W/10W/5W/8 ohms 6.5″ Kevlar woofer for deep, balanced sound 1″ silk dome tweeter with swivel design Paintable, magnetic grill for seamless integration High-quality spring-loaded push terminals Built-in 12dB/octave crossover for precise audio clarity Perfect for: Restaurants, bars, cafes, lounges, and retail stores Schools, offices, and conference rooms Multi-zone home audio setups What is 70V Audio? 70V systems simplify multi-speaker installations by allowing long speaker wire runs without signal loss. This setup ensures consistent sound distribution across different zones, making it ideal for large spaces. Package Includes: Rockville RCS180-6 Amplifier (2) Rockville WA6570 6.5″ In-Wall Speakers Remote Control, Rack Mount Ears, Power Cable, FM Radio Antenna Owner’s Manual Technical Specifications: Power: 120V / 50-60Hz Signal-to-Noise Ratio: -89.2dBA (full power) Frequency Response: 49Hz – 14.9kHz Amplifier Dimensions: 19” x 16” x 4” (22.7 lbs) Speaker Cut-out Dimensions: 12.5″ x 7.7″ Installation and Setup: Setting up the RCS180-6 amplifier and WA6570 speakers is simple, making it perfect for DIY installations. The Euro-block terminals on the amplifier and the front-access 5-way tap switch on the speakers ensure quick and easy connections. If you need a feature-rich commercial amplifier with powerful in-wall speakers, the Rockville RCS180-6 with WA6570 is the perfect solution for premium audio performance. Package Includes: (1) Rockville RCS180-6 180 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth, (2) Rockville WA6570 6.5″ 70V Commercial/Restaurant In-Wall Speakers 40W/20W/10W/5. Includes: Amplifier, Remote, Rack Mount Ears, Power Cable, FM Radio Antenna, Owner’s Manual, Warranty. Applications: Restaurant, Bar, Café, School, Lounge, Home (Multi-zone, Multi-room), Office, Warehouse. 70V Power Options: 40W, 20W, 10W, 5W, 8 ohms (transformer bypass). Features of RCS180-6: Rockville RCS180-6 350 Watt commercial/restaurant amplifier 19″ rack mountable (removable rack brackets) digital hybrid amplifier/receiver, Capable of 70 volt, 100 volt, 8ohm, and 4 ohm, 70/100 volt RMS Power: 184 Watts, 4-16 ohm binding post speaker output, 6-Zones of speaker outputs – each zone has a separate volume control, 70 and 100 volt binding post outputs for single zone playback of all 180 watts, Built in Bluetooth audio streaming, FM radio tuner. USB input to play audio stored on a thumb drive (32gb max), SD card slot to play music stored on an SD Card (32gb max), Separate volume control for MIC1, MIC2, MIC3, MP3, LINE1, LINE 2, and MP3, Echo control for the mic inputs with speed and repeat adjustments, Built in clipping limiter to protect the amp and speakers, BASS and Treble control, Detachable euro-block speaker output terminals for easy installation, Chime button for making announcements, Aluminum panel W/industrial grade knobs. 5 segments signal level indication, Built in cooling system keeps component cool at all times. Inputs and Outputs: (2) Sets RCA AUX inputs, (3) Mic inputs, RCA Line output, Optical input, Detachable euro-block speaker output terminals for easy installation, 100V speaker red positive speaker output terminal, 70V speaker red positive speaker output terminal, 8 Ohm red positive speaker output terminal, Shared negative speaker output terminal, Power Requirements: 120V / 50-60Hz. Features of WA6570: Pair of Rockville WA6570 6.5″ In-Wall 70V Commercial Speakers w Kevlar Woofer and Silk Dome Tweeters, Transformer Taps (70.7V): 40W/20W/10W/5W/8 ohms, Kevlar Cone, Rubber Surround, 6.5″Woofer, 1″Aluminum Voice Coil, 1″Silk Dome Tweeter, Swivel tweeter, 5-way tap switch on the front panel with easy access thanks to the magnetic grill, 23 oz. Ferrite Magnet, Built-in 12dB/octave crossover (cutoff frequency is 3KHz), Easy to mount inside your wall.

Warranty policy

All products are backed by unlimited mileage and one (1) Year, Limited Warranty. Please read terms and conditions for full description.

Before fitting the new part, you MUST find the reason why turbocharger FAILED and CORRECT it. Fitting a new turbo will only result the same failure. Less than 10% of turbocharger failures, are due to the turbo itself, in most cases failures are caused by outside influence. Most common causes of consequential failure (NOT COVERED BY WARRANTY) are listed below. All new Kott Turbo Works products are backed by a one (1) Year Limited Warranty. The one (1) Year Limited Warranty covers all manufacturer defects. Warranty does not cover labor recovery, accommodation, or any other costs. Turbochargers must be returned for a detailed warranty inspection. Any modification to the product voids the one (1) Year Limited Warranty. The one (1) Year Limited Warranty does not cover :

Failure to provide installation documents from repair facility. (Self/parking lot installs)
Failure to perform and document scheduled maintenance on time.
Seaping/leaking oil out of compression outlet, caused by excesive BLOW BY or clogged crankcase FILTER.
Failures due to Improper installation or maintenance, restricted oil feed pipe, damaged oil pump, low oil level, metal particles or carbon present, faulty DPF filters and/or EGR valves, contaminated lubricant, oil starvation.
Using liquid gasket or sealing compounds
White deposit present on exhaust parts due to excessive engine oil burn.
Over speeding, defective intercooler and or compression piping, stuck VGT, Remap
Foreign object and physical damage, defective or dirty air filter and supply pipes.

Due to the intricacies involved in warranty process and the industry standard protocol regarding the inspection of parts and turnaround time, we will not offer free replacements prior to full inspection and analysis. To minimize potential downtime for our customers, we strongly recommend the purchase of replacement parts as a proactive measure. We kindly request your understanding in this matter.

Core return

Cores must be returned in undamaged shipping conditions, if damage occurs during shipping, due to poor packaging or other reasons we reserve the right to prorate or forfeit core refund at our discretion.

Cores must be returned within 60 days for full core refund and it has to meet all criteria, after that core refund will be at KTW discretion. Upon receiving your good core, we will issue a refund within a 1 week period. All cores are subject to inspection upon arrival. Any returned item with physical damage will result in denial of return credit or refund. The Following are examples of Turbos that will NOT be refunded:

Turbochargers: Bent or broken anything except turbine shaft. Bent, broken or damaged housing.
Core has to be sent with copy of purchase order, in order to know for which turbo we have to issue the refund, KTW won’t know who returned it, without proper documentation.
Core must be like-for-like.

We provide free return shipping using a FREE FedEx return label to return the core back to us, from most of the locations in the US (excluding Alaska, Hawaii, and Puerto Rico).

Shipping and returns

We use FedEx ground for shipping, contact us for expedited service, or other special arrangements.

We usually ship the same day, unless item is out of stock due to local in store purchase, you can call/text us at 331-888-8726 to check availability and place 12 hours hold status on item.

If your order has shipped, the return and restocking fee is 20%. Customer must pay for return shipping. Shipping from when the product was sent out is not refunded as that cost has been spent and is unrecoverable. Returns are only allowed for 14 days from post marked day, after that only store credit can be allowed at our discretion, not guaranteed.

Installation tips

Most common misdiagnosis.

Oil leaks can be caused by a variety of factors, the main factor being incorrect pressure within the compressor and turbine housings, which is usually caused by:

Blockages to the air intake filter and/or hoses.
Excessive crank case pressure (blow-by from worn piston rings/bores)
Blockages in the exhaust system
Repeated hot engine shutdowns leading to carbon deposits (coke) in the centre housing
Dirty crankcase filter
Use of silicon sealant / incorrect gasket, twisted, bent or trapped oil return pipe

Most common turbocharger failure causes on semi trucks:

Foreign object damage – Broken off engine components, e.g. valves (D13), fragments of damaged pistons or injector tips, EGR block off plates.
Oil contamination – High carbon build up present in the engine can quickly contaminate new oil, contamination of new oil while servicing.
Degrading oil – excessive temperatures or extended service intervals.
Internal engine leaks – fuel or coolant mixing with oil supply.
Turbocharger overspeeding – Engine modifications including ‘chipping’ or ‘over-fuelling, bad program installed if EGR/DPF delete was performed, worn injectors. Tear in the air hose or the hose becoming completely detached. Restrictions in the air intake filter or pipe work. Air leaks between compressor and engine.
Lack of lubrication –

1. Engine left idle for long periods, especially during cold weather
2. Oil feed pipes containing bends or kinks
3. Lack of maintenance, oil change intervals should be shortened as engine gets old.
4. Insufficient oil in the sump
5. Incorrect oil inlet gasket used leading to restriction in oil supply
6. Build-up (coking) / carbon deposits in the oil feed pipe
7. Applying silicone to the oil inlet gasket causing blockages
8. Sludge or coke build up in bearing housing from hot shutdowns
9. Failure to prime the turbo with oil before initial run
